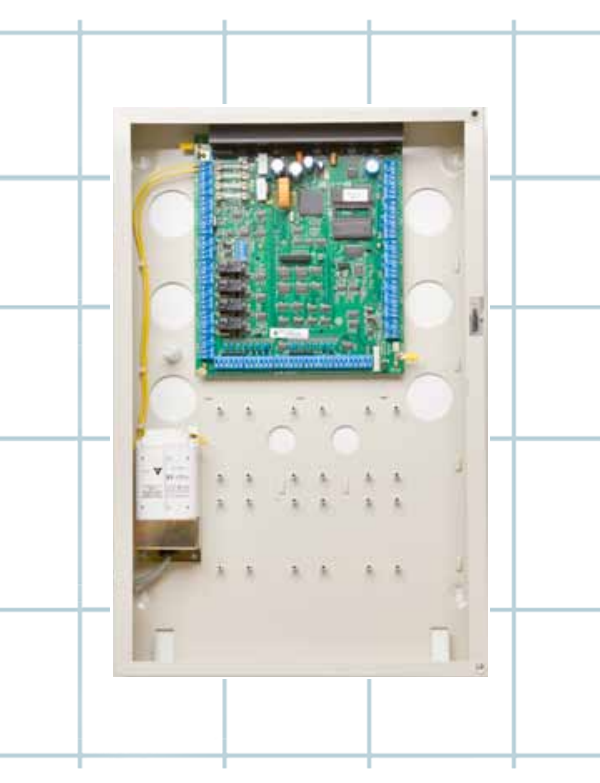

TS0869 Intelligent Lift Controller
Overview:
The Intelligent Four-Lift Controller extends the Challenger system’s capability to provide state-of-the- art lift access control functionality.
Each Intelligent Four-Lift Controller (TS0869) provides intelligent access control for up to 4 lift cars and 64 floors.
The TS0869 communicates with lifts either via relays or via high-level interface to most commercially available lift manufacturers by utilising a TS0868
lift protocol interface board1.  The TS0869 supports high-level lift protocol to EPL/Kone and Otis lifts. It also supports new destination control lift systems (Floor selection from outside lift car) for Kone lifts via connection to a GE destination control interface unit.
Floor control operations like badging  a  card  or entering a PIN or a combination of both, can be programmed to function only during specified times of the day.
Unlike many other lift control systems the TS0869’s onboard database provides floor access control functionality even if communications with the Challenger panel (TS0816) fail.
The Controller also supports many Wiegand reader
technologies.



Features:
?4 lifts and up to 64 floors
?High level interface to EPL/Kone and Otis lifts
?Supports high level interface to destination control lift systems from Kone
?Supports card formats of up to 48 bits
?Onboard database for offline condition
?Up to 12 Intelligent Lift Controllers can add 48 lifts to a Challenger panel
?16 alarm inputs, expandable to 255 for floor monitoring by
connecting TS0820 DGPs
?Local RS-485 bus for up to four readers per lift
?Supports wide range of third-party readers
?4 relays on board expandable to 150 for floor control (max. 64 floors per lift)
?Up to 48 freely programmable outputs using macro logic equations
?Intelligent Access Controllers’ onboard memory supports 11,466 users and can be expanded to 65,535 IUM users (the Challenger panel must use the same memory configuration)
?System conditions such as low battery, mains fail, and tamper can be programmed to operate outputs
?All reader LEDs are programmable, and can display alarm or access status
?Free access to certain floors during override time zone
