Overview
-
The TS0099 provides the Challenger V8 system with IP connectivity over LAN/WAN to management software or central monitoring station.
-
It enables the Challenger to be configured and managed remotely as well as locally.
-
By providing IP connectivity you can achieve significant savings in cabling by leveraging your existing corporate IT infrastructure.
-

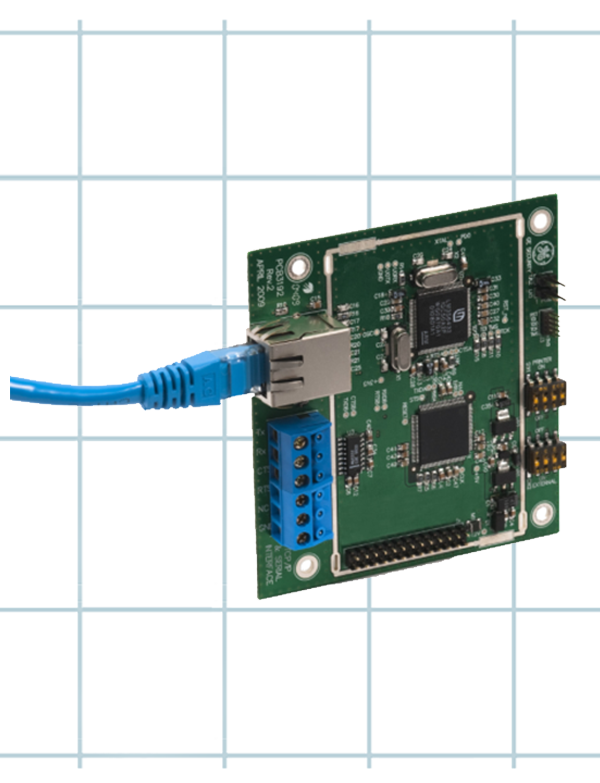

The TS0099 plugs directly onto the TS0816 Challenger board. It has an RJ-45 port for Ethernet connection, and a serial printer interface for local printing of events.
-
For maximum security the TS0099 uses 128-bit encryption.
-
The TS0099 may be programmed for either polled or event driven data transfer. In event mode, network utilisation is reduced to data transmission only. This not only enables quicker delivery of events, but also reduces network bandwidth usage to a negligible amount.
-
In the event of IP communication failure, the Challenger panel’s onboard dialler may be used as a backup device to report alarms.
Features
?IP communication for Challenger panels
?TS0099 plugs directly onto the Challenger V8 board
?Alarm reporting over IP using CID (Contact ID) format
?Integrated firewall protection
?Crossover cable use (by installers) is no longer required
?Field firmware upgradeable (via serial connection)
?High security using 128-bit Twofish encryption
?In the event of IP communication failure, the Challenger panel automatically use its onboard PSTN dialler to report alarm events
?Configurable port number
?Provides network interface for self-administered security systems and/or interface with central station receivers
?A directly-connected printer is used to print, in real time, all alarms and/or access control events. Alternatively, alarm and access control event history stored in the panel can be printed at any time
